Final Engineering Design Project
Press left or right arrow keys to switch image and
caption. Caption.

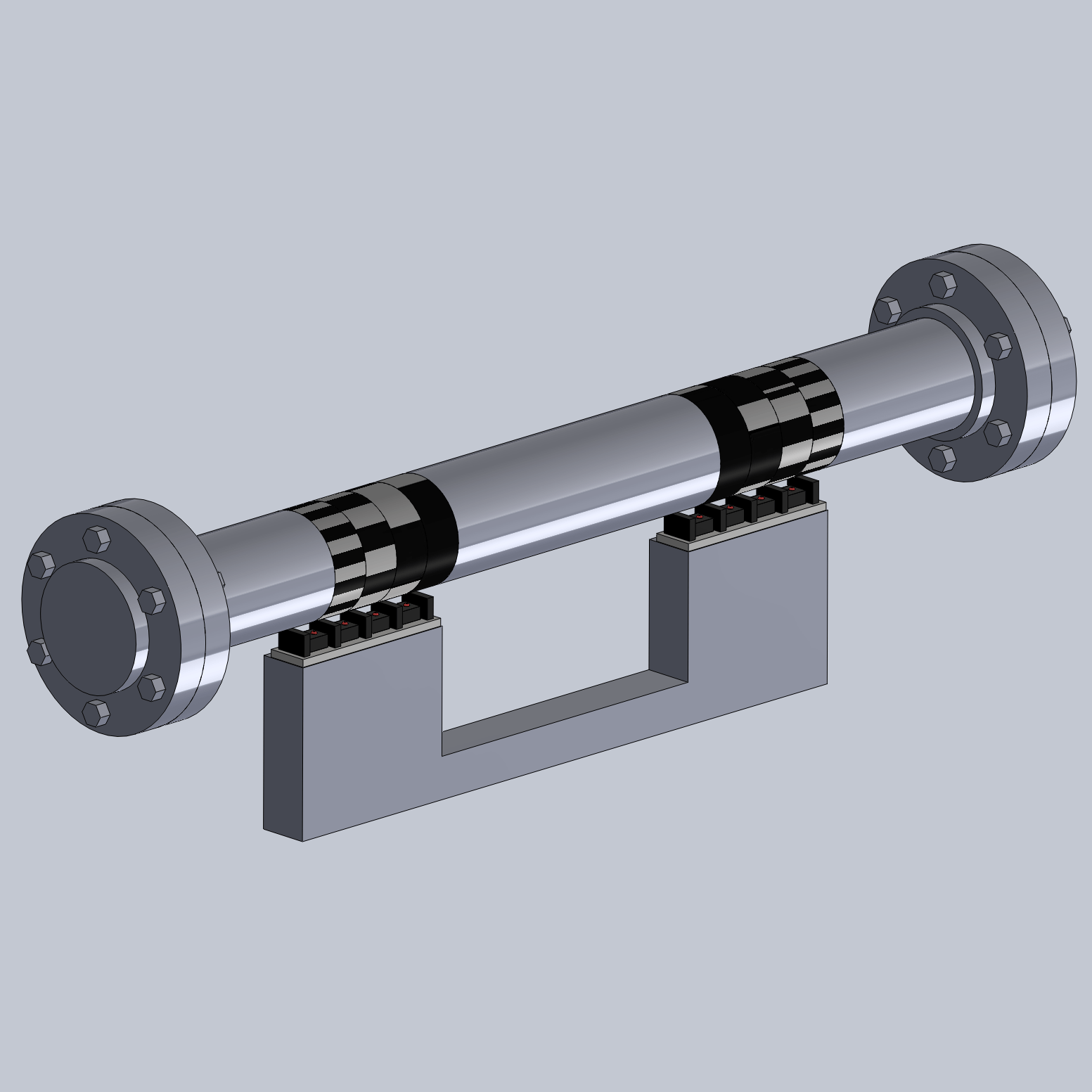

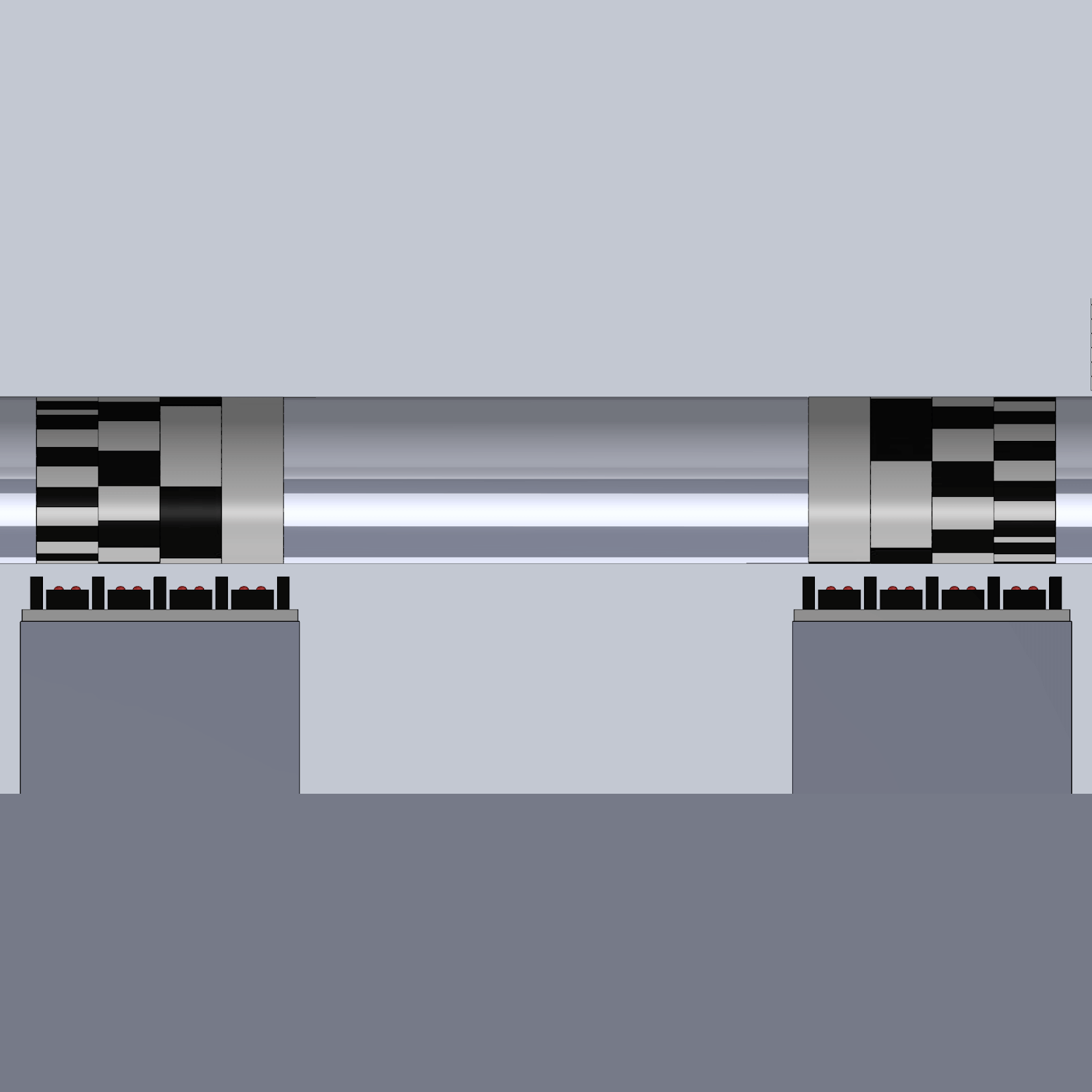

A CAD model of our proposed system. Attached to the shaft is a linear encoder and underneath the shaft are the optical sensors.
Torque Measuring System for Turbine Shaft Coupling
Modeling

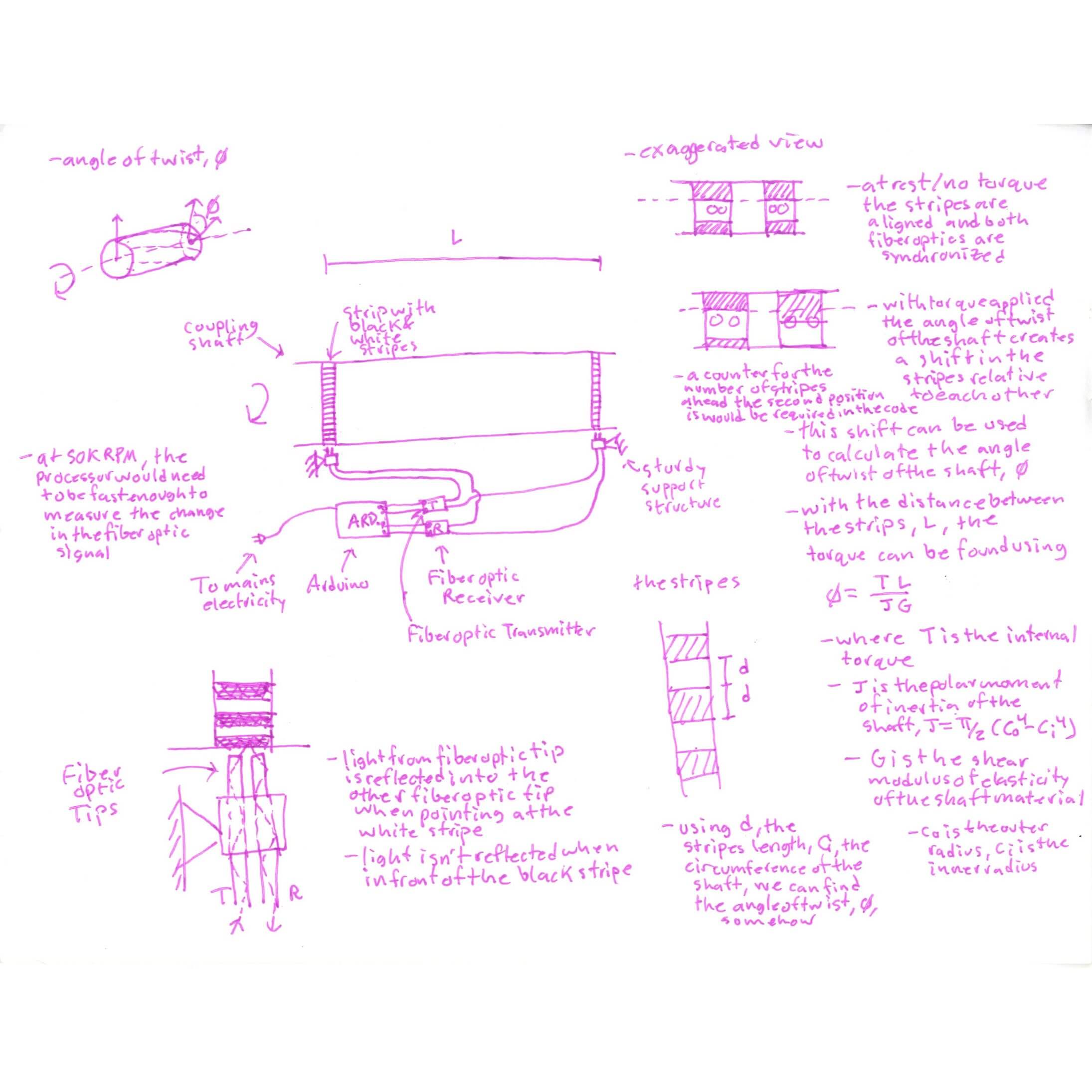

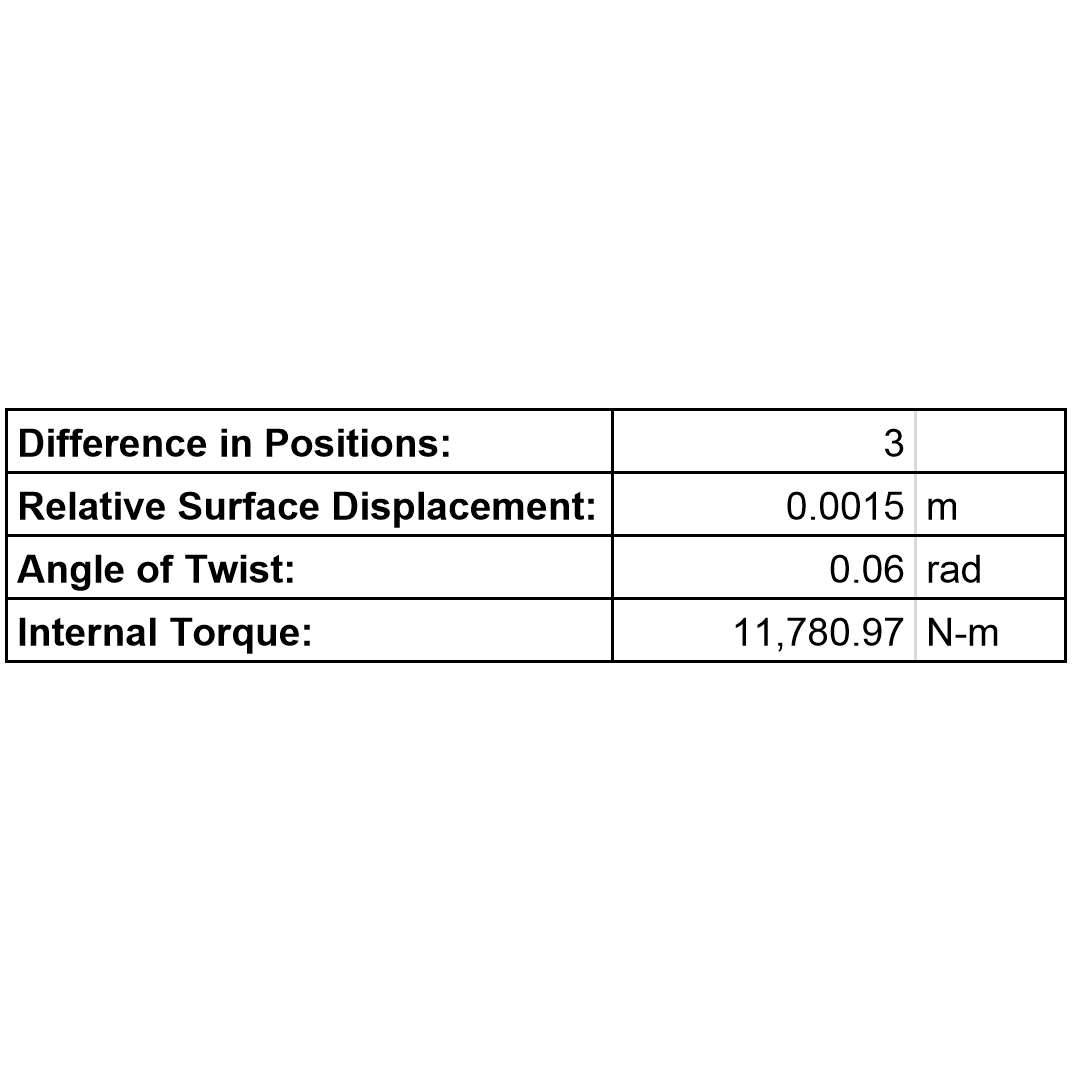

The goal of my final engineering design project for my BS in Mechanical Engineering was to design a system that could calculate the torque on a shaft attached to a gas turbine. The system we designed used the angular displacement between the ends of the shaft, which was caused by the torque it transmitted across it. To measure this angular displacement our system used optical sensors, an encoded tape, and a microcontroller.
We employed engineering design methodologies including a Pugh chart, a 6-3-5 concept generation session, and a morph matrix.
What I did
- SolidWorks CAD
- Mechanics of Materials Engineering
- Electronics and Computers Principles
- Engineering Design Methodology
My final design class took place during a summer semester, so the project was on an accelerated timeline. This project allowed me to bring together many of the engineering techniques and principles taught to me during my time as an engineering undergraduate.
